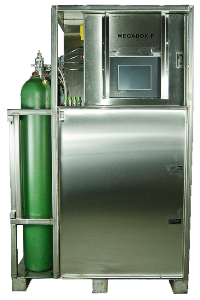

The Megadox-P is a chlorine dioxide gas generation system designed for use in any pharmaceutical, food processing/manufacturing, laboratory, or research setting. It provides a rapid and highly effective method to decontaminate large volume areas up to 280,000 ft3 in ideal conditions, including rooms, production areas, isolators (sterility test, filling line, containment, etc.), passthroughs, processing tanks and vessels, cleanrooms, lyophilizers, etc. The Megadox-P utilizes a rugged industrial control system and is constructed of robust, corrosion resistant 316L stainless steel to provide an exceptionally long life.
The Megadox-P is portable in design with a base is designed with the same dimensions as a standard pallet for fast transport around a facility or around the world. The system features a sophisticated photometric sterilant concentration monitoring system allowing for a tightly controlled and consistent sterilization process. This repeatable, tight process control and accurate concentration monitoring system, that can measure from up to 5 locations, makes chlorine dioxide gas sterilization cycles easy to validate. All instrumentation, including the concentration monitoring system, can be easily calibrated to traceable standards. When sterilization cycles are completed, a run record is produced that contains cycle data including the date, cycle time, cycle steps, as well as temperature, pressure, and chlorine dioxide concentration. Run Data can also be electronically logged to the included USB drive. The control system features a password protected, recipe management system with historical and real time trending of cycle data.
The Megadox-P's base is designed with the same dimensions as a standard pallet for fast transport around a facility or around the world. All instrumentation, including the concentration monitoring system, can be easily calibrated to traceable standards.
Download the Megadox-P Brochure
Chlorine dioxide is unparalleled in its ability to effectively decontaminate. Being a true gas, it is unaffected by temperature changes, room configuration, chamber loads, has excellent penetration and distribution properties and is an EPA registered sterilant.
ClorDiSys' Megadox-P features a sophisticated real-time chlorine dioxide gas concentration monitoring system capable of monitoring up to 5 sites to ensure a tightly controlled decontamination process.
The exceptional size scaling ability of chlorine dioxide gas, a true gas, makes even the most challenging decontamination an easy task.
The Megadox-P is palletized for easy transport and fitted with quick sterilization connections making it easy to interface with a wide variety of applications.
The Minidox-M utilizes a USB drive to keep track of all cycle parameters during a decontamination. This data can then be downloaded to any database software. A printed run record can also be provided with the included printer.
|Decontamination Capacity||up to 280,000 ft3
(8,000 m3) in ideal conditions
|Dimensions||48" W x 76" H x 48" D
(122 cm x 193 cm x 122 cm)
|Weight||1,500 lbs. (680 kg)|
|Power||100-240 VAC, 10 amp, single phase|
